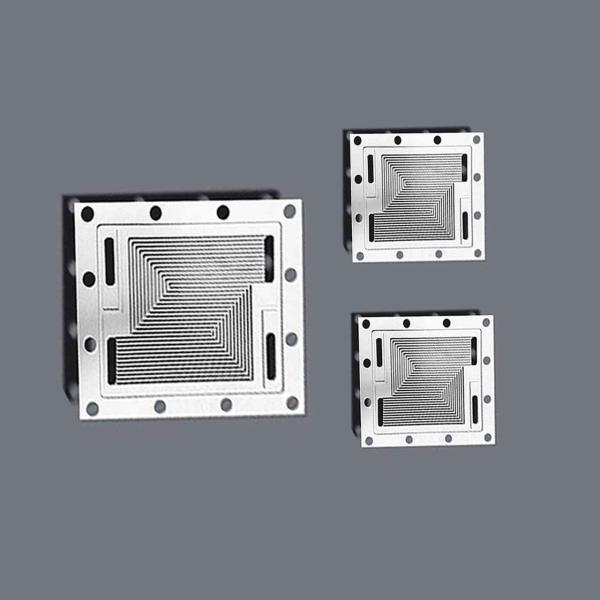

Precision Chemical Etched Titanium Flow Plate with ±0.01mm Tolerance

  • 1
  • 2
  • 3

Brand Name : XHS/Customize

Model Number : Customize

Certification : ISO 9001, ISO 14001, IATF 16949

Place of Origin : China

MOQ : 10

Price : 50-100USD

Payment Terms : T/T

Supply Ability : 10000-100000PCD / week

Delivery Time : 5-10 work days

Packaging Details : PE bags and Carton

Material : Titanium,alloys

Features : Lightweight, Corrosion Resistant, High Strength

Surface Finish : Smooth

Etching Type : Chemical Etching

Size : Customized

Contact Now

Precision Chemical Etched Titanium Flow Plate with ±0.01mm Tolerance


Flow Plate Overview
Xinhaisen Technology specializes in manufacturing high-precision chemically etched flow plates for plastic injection molding, die casting, and other industrial applications. Our flow plates offer superior flow control, exceptional durability, and precise channel geometries that optimize material distribution in production processes.



Flow Plate Key Features

·Precision Channel Geometry
·Material Versatility
·Complex Designs
·Burr-Free Surfaces
·Fast Turnaround
·Cost-Effective



Flow Plate Specification

Parameter

Specification

Plate Size

Up to 600mm × 800mm (custom sizes available)

Hardness

Up to HRC 52 (heat treatable options)

Flatness

≤0.05mm/m²

Surface Finish

Ra ≤ 0.4μm (mirror polish available)

Tolerance

±0.01mm (high precision)

Channel Width

0.5mm - 5.0mm (customizable)


Precision Chemical Etched Titanium Flow Plate with ±0.01mm TolerancePrecision Chemical Etched Titanium Flow Plate with ±0.01mm Tolerance


Performance Advantages

·Optimized Flow: Precise channel geometries ensure consistent material distribution
·Wear Resistance: Durable materials extend service life
·Thermal Stability: Maintains dimensional accuracy under temperature variations
·Corrosion Resistance: Ideal for harsh molding environments
·Easy Maintenance: Smooth surfaces simplify cleaning


Available Flow Plate Types

·Standard Flow Plates: For general injection molding applications
·Hot Flow Plates: With integrated heating elements
·Micro-Flow Plates: For precision small-part molding


Quality Assurance

·Material certification for all raw materials
·100% dimensional inspection
·Surface roughness testing
·Pressure testing available
·Heat treatment validation (when applicable)

Welcome to contact us at any time!
